SysCart RenderPro 6000 Ultimate 16K Video Rendering Workstation- Threadripper PRO 9995WX/ RTX 6000 Pro/ 384GB DDR5/ 16TB Gen5 NVMe SSD/

DESCRIPTION:
Unleash unprecedented creative power with the ultimate 16k video rendering workstation, a technological marvel engineered for Hollywood-grade production. Anchored by the AMD Ryzen Threadripper PRO 9995WX and the Nvidia RTX 6000 Pro Blackwell with 96GB GDDR7, this system redefines the limits of computational throughput. Featuring 384GB of high-velocity DDR5 memory and 16TB of Gen5 storage, it manages uncompressed high-bitrate footage with absolute fluidity. This workstation is a mechanical necessity for visual effects artists and colorists demanding zero-latency rendering and flawless stability within a titan-class super full tower environment.

CONFIGURATION:
Processor: AMD Ryzen Threadripper PRO 9995WX
Graphics Card: Nvidia RTX 6000 Pro Blackwell 96GB GDDR7 for AI & Rendering Workstation GPU
Cooler: Cooler Master MasterLiquid PL360 TR5-SP6 CPU Liquid Cooler
Motherboard: ASUS PRO WS WRX90E-SAGE SE AMD WRX90 Chipset sTR5 Socket DDR5 EEB Workstation Motherboard
Ram: CORSAIR Vengeance 384GB (48GBx8) 7000MHz CL40 DDR5 RAM
Power Supply: Corsair WS3000 Platinum 3000 Watt ATX 3.1 Fully Modular Workstation SMPS
Storage: WD Black SN8100 16TB (4TB*4) NVMe Gen5 SSD
Case: CORSAIR 9000D RGB Airflow Super Full Tower Case

CONFIGURATION SPECIFICATIONS:
AMD Ryzen Threadripper PRO 9995WX
Cores: 128
Threads: 256
Max Boost Clock: 5.1 GHz
L3 Cache: 512 MB
Socket: sTR5
PCIe Lanes: 128 Gen 5

Nvidia RTX 6000 Pro Blackwell 96GB GDDR7
Memory: 96 GB GDDR7
Architecture: Blackwell
Memory Bandwidth: 2.1 TB/s
ECC Support: Yes
Multi-GPU Support: NVLink Compatible

Cooler Master MasterLiquid PL360 TR5-SP6
Radiator Size: 360 mm
Pump Design: Dual Chamber Gen S
Fan Type: Mobius 120P ARGB
Socket Compatibility: sTR5 / SP6

ASUS PRO WS WRX90E-SAGE SE
Chipset: AMD WRX90
Form Factor: EEB
Memory Slots: 8 x DDR5 (Octa-channel)
Expansion Slots: 7 x PCIe 5.0 x16
Networking: Dual 10G LAN

CORSAIR Vengeance 384GB DDR5
Total Capacity: 384 GB (8 x 48 GB)
Speed: 7000 MHz
Latency: CL40
Type: DDR5 RDIMM
Voltage: 1.4V

WD Black SN8100 16TB NVMe Gen5
Configuration: 4 x 4TB RAID 0/1
Interface: NVMe PCIe Gen5 x4
Read Speed: 14,000 MB/s per drive
Write Speed: 12,000 MB/s per drive

Corsair WS3000 Platinum
Wattage: 3000 W
Efficiency: 80 Plus Platinum
Standard: ATX 3.1
Modularity: Fully Modular

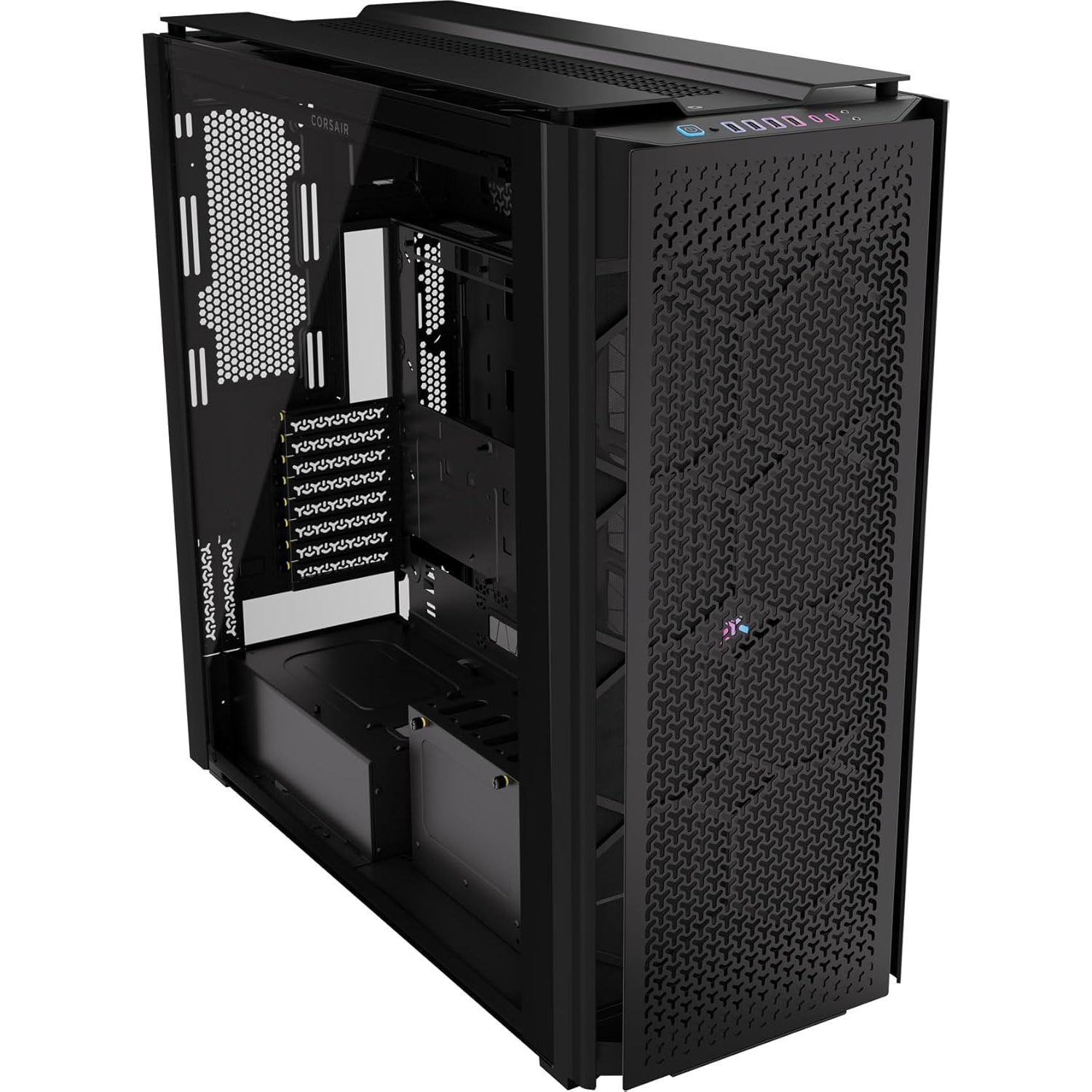

CORSAIR 9000D RGB Airflow
Chassis Type: Super Full Tower
Motherboard Support: EEB / ATX / XL-ATX
Radiator Support: Up to 2 x 480mm Front, 2 x 480mm Top
Expansion Slots: 8 + 3 Vertical

PERFORMANCE HIGHLIGHTS:
TITAN CLASS MULTI CORE PROCESSING
The AMD Ryzen Threadripper PRO 9995WX stands as the ultimate computational engine for 16k video mastering. With 128 physical cores and 256 threads, it provides the parallel processing power necessary to handle high-resolution RAW debayering and complex physics simulations simultaneously. In a post-production workflow, this translates to near-instant rendering of multi-layered timelines in Adobe Premiere Pro and DaVinci Resolve. The 512MB of L3 cache acts as a data superhighway, ensuring that frame manipulation occurs with zero latency, making it a mechanical necessity for mission-critical film production.

BLACKWELL ARCHITECTURE VISUAL SUPREMACY
The Nvidia RTX 6000 Pro Blackwell featuring 96GB of GDDR7 memory is the pinnacle of visual computing. This massive VRAM buffer allows colorists and 3D artists to load entire 16k uncompressed sequences directly onto the GPU, eliminating system memory bottlenecks. The Blackwell architecture introduces enhanced RT cores for real-time ray tracing and Tensor cores for AI-driven upscaling and frame interpolation. With 2.1 TB/s of memory bandwidth, it facilitates fluid playback of 8K and 16K footage with complex color grades and OpenFX plugins applied in real-time without dropping a single frame.

OCTA CHANNEL MEMORY INFRASTRUCTURE
Equipped with 384GB of CORSAIR Vengeance 7000MHz DDR5 RAM, this workstation utilizes an octa-channel memory architecture to provide unmatched data throughput. For 16k rendering, memory capacity and speed are critical; this setup ensures that ram previews in After Effects can span minutes of high-fidelity footage rather than seconds. The RDIMM ECC support provides enterprise-grade stability, preventing system crashes during long-duration render exports. This massive memory pool allows for seamless multitasking between 3D modeling, video editing, and AI-assisted rotoscoping without system paging.

GEN5 STORAGE VELOCITY AND RAID ARRAY
The WD Black SN8100 16TB Gen5 SSD configuration delivers extreme data velocity, reaching read speeds over 14,000 MB/s per drive. This storage throughput is essential for scrubbing through 16k timelines where data rates can exceed several gigabytes per second. By utilizing Gen5 NVMe technology on the WRX90 platform, the workstation avoids input/output bottlenecks during high-bitrate file ingestion and proxy generation. This 16TB high-speed reservoir ensures that complex assets and media caches are instantly accessible, drastically reducing wait times and maximizing creative output.

PLATINUM POWER AND THERMAL MANAGEMENT
Reliability is anchored by the 3000 Watt Corsair WS3000 Platinum power supply, which meets ATX 3.1 standards to handle massive transient power spikes from multi-GPU configurations. The Cooler Master MasterLiquid PL360 ensures the Threadripper PRO maintains peak boost clocks under 100% sustained load. Housed in the CORSAIR 9000D Super Full Tower, the system benefits from colossal airflow capacity, utilizing massive radiator support to maintain sub-optimal temperatures. This synergy of industrial-grade cooling and overbuilt power delivery ensures the workstation remains stable during weeks of continuous 16k rendering.

16K VIDEO RENDERING BENCHMARKS:
